How to Build a Juniper EVPN-VXLAN Fabric: VXLAN & Anycast Gateway (Part 3)

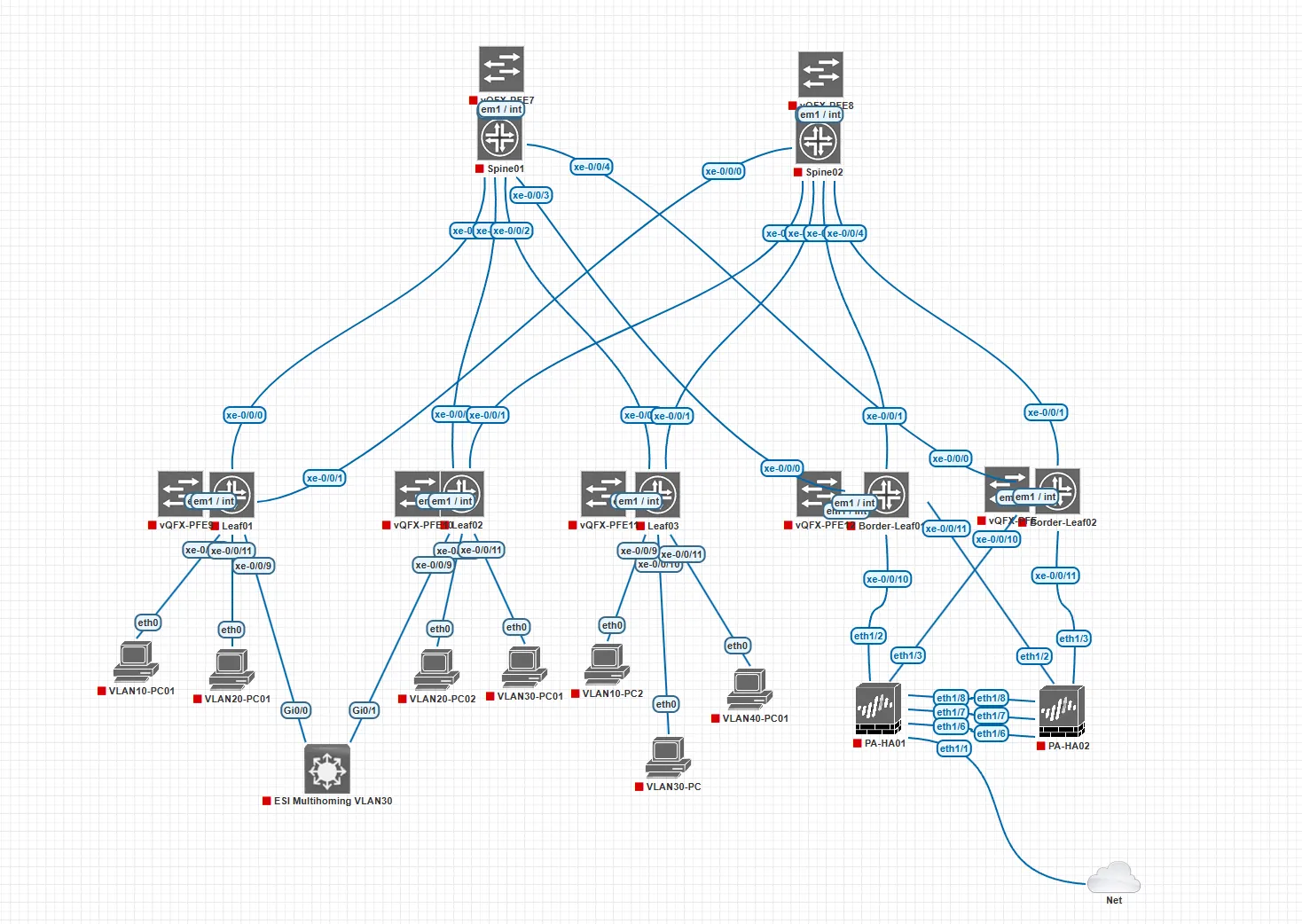

In Part 1, we built the underlay network.
In Part 2, we configured the BGP EVPN overlay (control plane).

Now in Part 3, we bring everything to life by configuring:

VXLAN Data Plane + Anycast Gateway

This is where:

• VXLAN tunnels are formed
• VLANs are mapped to VNIs
• Distributed gateway (IRB) is enabled
• Inter-VLAN routing happens across the fabric

What is VXLAN + Anycast Gateway?

VXLAN

VXLAN encapsulates Layer 2 traffic over Layer 3 using:

• VTEPs (VXLAN Tunnel Endpoints)
• VNIs (VXLAN Network Identifiers)

 Anycast Gateway

All leaf switches share the same gateway IP and MAC, allowing:

• Active/Active gateway
• No traffic hairpinning
• Optimal routing

Step 1: Configure VTEP (VXLAN Tunnel Endpoint)

# Same for all the Leaf and Border Leaf switches
set switch-options vtep-source-interface lo0.0

This defines the source IP for VXLAN tunnels (loopback interface).

Step 2: Configure Route Distinguisher & VRF Target

# route-distinguisher (RD) Must be unique per leaf
set switch-options route-distinguisher 10.0.0.11:1
set switch-options vrf-target target:65000:9999
set switch-options vrf-target auto

Explanation:

• route-distinguisher (RD) → Must be unique per leaf
• vrf-target → Used for route import/export
• auto → Automatically derives RT for EVPN

Step 3: Enable EVPN VXLAN Encapsulation

# Same for all the Leaf and Border Leaf switches
set protocols evpn encapsulation vxlan
set protocols evpn extended-vni-list all
set protocols evpn multicast-mode ingress-replication
set protocols evpn default-gateway no-gateway-community

Key Points:

• encapsulation vxlan → Enables VXLAN
• extended-vni-list all → Advertise all VNIs
• ingress-replication → No multicast required
• no-gateway-community → Ensures proper Anycast GW behavior

Step 4: Configure VNI to VRF Mapping

# Same for all the Leaf and Border Leaf switches
set protocols evpn vni-options vni 10010 vrf-target target:65000:10010
set protocols evpn vni-options vni 10020 vrf-target target:65000:10020

This ensures correct route import/export per VNI.

Step 5: Configure VLAN to VNI Mapping

# Same for all the Leaf and Border Leaf switches
set vlans C1-VLAN10 vlan-id 10
set vlans C1-VLAN10 l3-interface irb.10
set vlans C1-VLAN10 vxlan vni 10010

set vlans C2-VLAN20 vlan-id 20
set vlans C2-VLAN20 l3-interface irb.20
set vlans C2-VLAN20 vxlan vni 10020

Each VLAN is mapped to a unique VNI.

Step 6: Configure VRF (Tenant Routing Instance)

# Same for all the Leaf and Border Leaf switches
set routing-instances TENANT-SHARED instance-type vrf
set routing-instances TENANT-SHARED interface irb.10
set routing-instances TENANT-SHARED interface irb.20

Step 7: Configure RD and RT for VRF

# Unique RD per Leaf
set routing-instances TENANT-1 route-distinguisher 10.0.0.11:1010

# Common RT across fabric
set routing-instances TENANT-1 vrf-target target:65000:1010

Design Rule:

• RD → Unique per leaf
• RT → Same across fabric

Step 8: Anycast Gateway (IRB Interfaces)

Although not shown above, you must configure:

# Same for all the Leaf and Border Leaf switches
set interfaces irb unit 10 family inet address 192.168.10.1/24
set interfaces irb unit 20 family inet address 192.168.20.1/24

Same IP must be configured on all leaf switches.

Traffic Flow Explained

Same VLAN (L2 Traffic)

• Host → Leaf
• VXLAN encapsulated → Remote Leaf
• Delivered to destination

Inter-VLAN (L3 Traffic)

• Routed locally via IRB
• No need to go to spine

This is the power of Anycast Gateway

Verification Commands

show evpn database
show ethernet-switching table

Expected Outcome

• VXLAN tunnels established
• MAC/IP learned via EVPN
• Inter-VLAN routing working locally
• No flooding in network

Common Mistakes

❌ Missing vtep-source-interface
❌ Wrong VNI mapping across leafs
❌ Different gateway IPs on leafs
❌ Incorrect VRF target

Full Series Recap

• Part 1 → Underlay Network
• Part 2 → BGP EVPN Overlay
• Part 3 → VXLAN + Anycast Gateway

Conclusion

With VXLAN and Anycast Gateway, your fabric becomes:

• Fully distributed
• Scalable
• High-performance
• Multi-tenant ready

You now have a complete EVPN-VXLAN fabric running on Juniper QFX switches.
